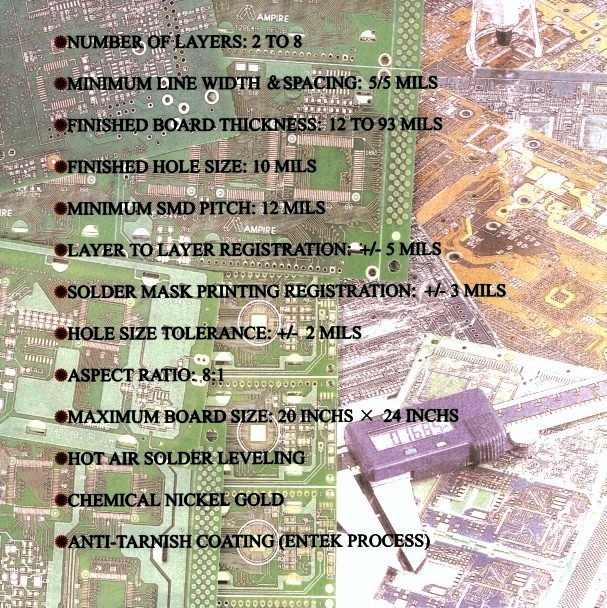

Technology Description

Now

Under Development

Minimum Trace/Space (inner/outer) 5/5mils 4/4 mils
Minimum Finished Hole Diameter 10mils 6 miles
Maximum Aspect Ratio 8 : 1 10 : 1
Minimum SMT Device pitch 12 mils 10 mils
Minimum SMT Device Land Width 8 mils 6 mils
Board Flatness Tolerance +/- 0.7 % +/-0.5%
Layer to Layer Reg. Tolerance +/-5 mils +/-1 mils
Entek / Gold Plating Yes Yes
